Launchpad List

Created: Modified: Documentation

The Launchpad List allows you to monitor all Launchpads in your organization from a single page.

Launchpad List

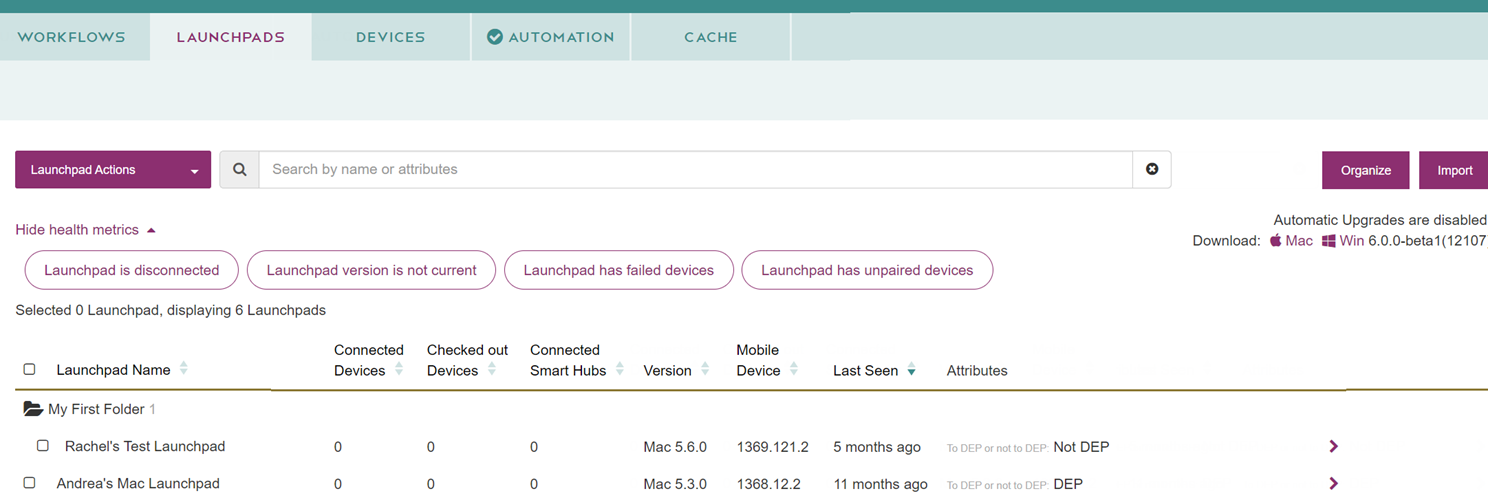

Several columns are displayed for the Launchpad list.

  • Launchpad Name, set by you when registering or changed in Launchpad Options
  • Connected Devices
  • Checked Out Devices, if Check Out is enabled
  • Count of connected Smart Hubs
  • Launchpad Version
  • MobileDevice Version
  • Last Seen or Connected, if currently online
  • Attributes — any values for custom Launchpad Attributes, if applicable

Click on any Launchpad row to see Launchpad Details.

Download Launchpad Software

Click Download Launchpad to download the latest Launchpad software for Mac and Windows. For more information, see Install & Register Launchpads.

The Launchpad page displays an indicator of whether Launchpad automatic upgrades are enabled or disabled. The setting is controlled in the Admin > Launchpads setting.

Organize

To create folders for your Launchpads, or move Launchpads between folders, click Organize.

Import

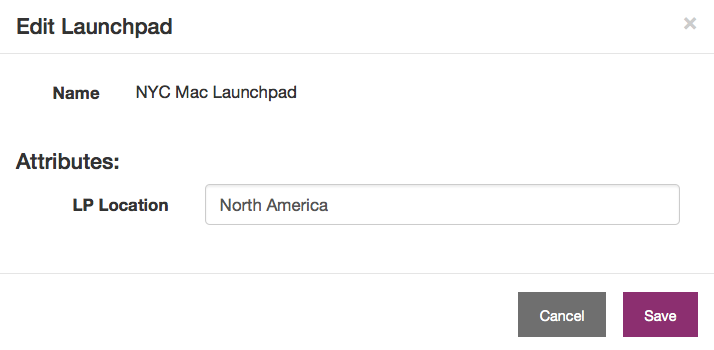

If you use Launchpad Attributes, you may import a CSV file to populate these attributes.

The import dialog offers a template to download to save you time.

  • The first row of the import file is for column headers.
  • You must include a column named LP name.
  • Other column headers should match names of your Attributes.
  • Unrecognized columns are ignored.

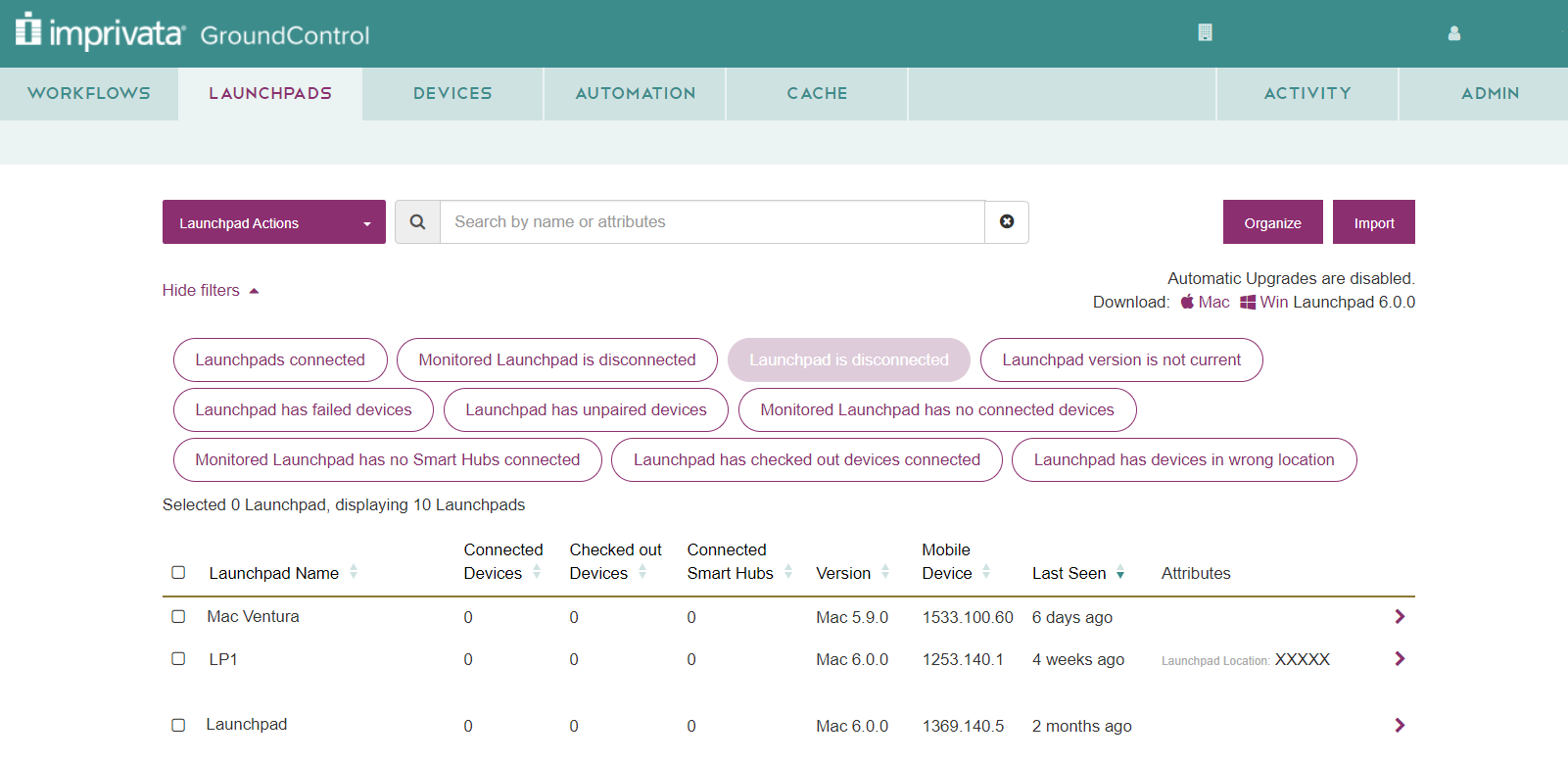

Filter Launchpads

Use the filter bar to filter the Launchpad list by name or by attributes.

Hide filters / Show filters

Health metrics filters are displayed by default, as a part of the Dashboard feature.

Click Hide filters to hide the health metrics filters. Click Show filters to view them again.

Launchpad Actions

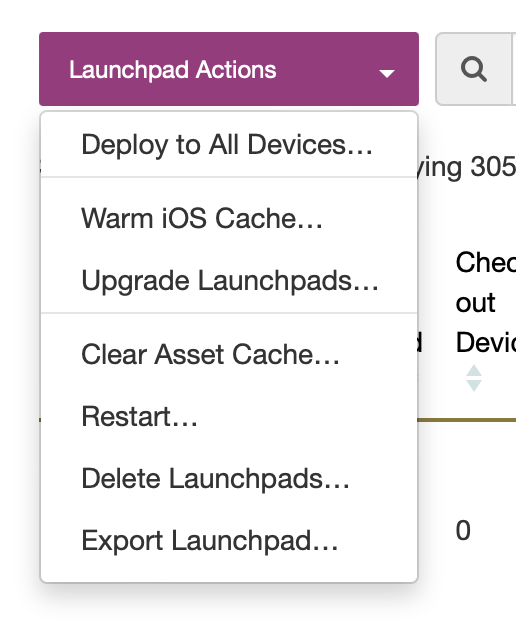

To perform a command on one or more Launchpads, click the checkboxes next to each Launchpad in the list, and select an option from the Launchpad Actions menu.

Deploy to All Devices Deploy a Workflow to all devices connected to all selected Launchpads.
Warm iOS Cache Perform a check to make sure all Apple IPSW files have been downloaded to the Launchpad’s local asset cache. The Launchpad examines the list of device models that have connected in the last 30 days to determine which IPSW files to download. This feature is performed automatically if iOS Update Delay is enabled.
Upgrade Launchpads Upgrade the Launchpad software to the latest version available. This is command is useful if Automatic Launchpad Upgrades is disabled. Launchpads that are currently connected will upgrade as soon as all running deployments have completed. Launchpads that are offline will be upgraded when they next connect.
Update <vendor> Firmware Update the Smart Hub firmware to the latest version available. Applies to Cambrionix and Bretford. To update the firmware on your Smart Hub, upload your desired firmware or select a firmware version already in your assets.
Send LP Deployment Select Workflow to deploy on Launchpad.
Clear Asset Cache Delete all files from the Launchpad’s local asset cache.
Restart Attempt to restart the Launchpad app on the selected Mac or Windows PCs. You may choose to wait until all running deployments have finished, or choose to immediately restart.
Delete Launchpads Remove the Launchpad(s) from the Launchpad List and force the Launchpad application to unregister.
Export Launchpads Export a CSV file listing helpful Launchpad data, including Name, Version, Platform, IP, Launchpad Attributes, MobileDevice version and more. If you filtered the Launchpad list, the CSV contains the results from your filter.
