Integrate with Cisco ISE

Created: Modified: Documentation

NOTE: This article applies to Android and iOS devices.

GroundControl 6.1 introduces the support for integration with Cisco Identity Services Engine (ISE) to pre-register iOS and Android devices for Wi-Fi.

GroundControl integrates with Cisco ISE to allow administrators to automate allow-listing mobile devices for secure Wi-Fi networks. GroundControl can add device MAC addresses to an ISE device group specified in the Register with Cisco ISE Workflow action. GroundControl communication to the Cisco ISE server originates from the Launchpad running the Workflow action, not from the GroundControl server in the cloud.

Prerequisites

Take note of the following prerequisites:

  • Enable External RESTful Services (ERS) in the Cisco ISE environment for this integration.
  • In Cisco ISE, create a group to manage the GroundControl devices. Take note of the Group Name for later use when configuring the Register with Cisco ISE Workflow action in GroundControl.
GroundControl Configuration

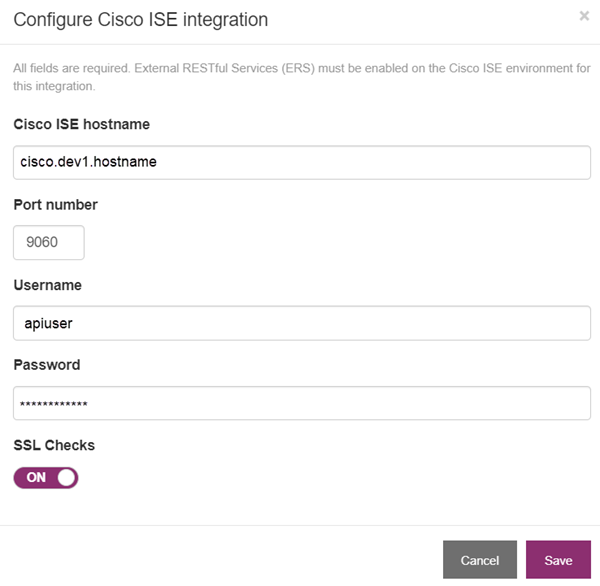

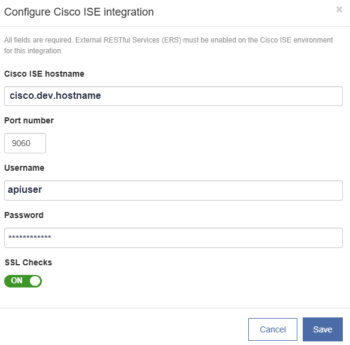

To configure the Cisco ISE integration in GroundControl:

  1. Navigate to the Admin > Cisco ISE tab and switch to ON.
  2. Click Configure.
  3. In the Cisco ISE hostname box, type the hostname of the Cisco ISE server.
  4. In the Port number box, type the port number for the Cisco ISE server. By default, the port number is 9060.
  5. In the Username box, type the username for an admin user for the Cisco ISE server.
  6. In the Password box, type the password for the user.
  7. By default, SSL checks are enabled.
  8. Click Test to test the connection between the Launchpad and Cisco ISE.
  9. Click Save.

NOTE: If you make changes to the Cisco ISE configuration, you must restart the Launchpads to pick up the changes.

Add a Workflow Action — Register with Cisco ISE

This action allows you to register devices with Cisco ISE. The Workflow action is run at the Launchpad. In case of a multi-phase deployment, it is run in the first phase.

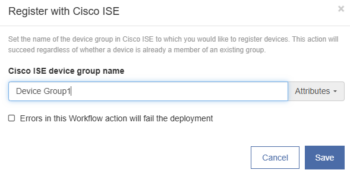

  1. Create or edit a Workflow. From the Add an action menu, select Advanced > Register with Cisco ISE.
  2. In the Cisco ISE device group name box, type the name of the device group in Cisco ISE to which you would like to register devices. This action will succeed regardless of whether a device is already a member of an existing group.

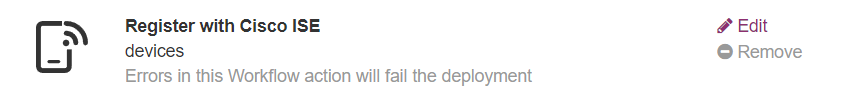

  3. Optional. Click Errors in this Workflow action will fail the deployment. Click Save.
  4. Deploy the Workflow to your devices.
