Send Webhook

Created: Modified: Workflow Actions

NOTE: The workflow actions available to you depend on the Workflow model you select, the MDM system you use, and the OS of your devices.

GroundControl can send HTTP notifications as part of a deployment. This may be used to send data to an asset management system, for example.

NOTE: Webhooks are sent from our server, not the Launchpad, so expect requests to originate from the cloud.

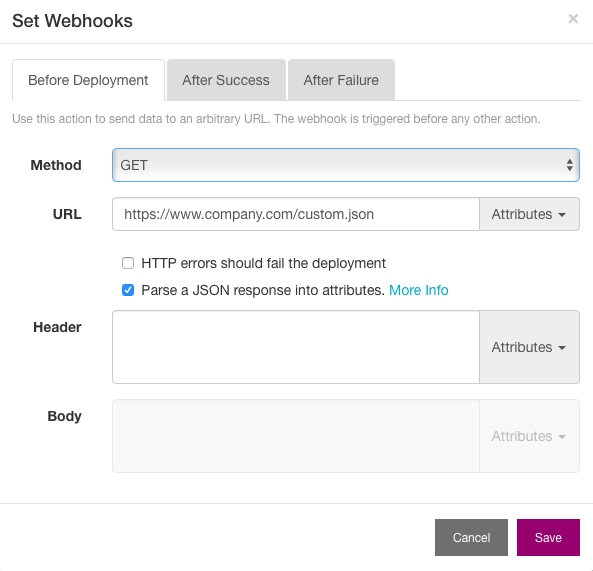

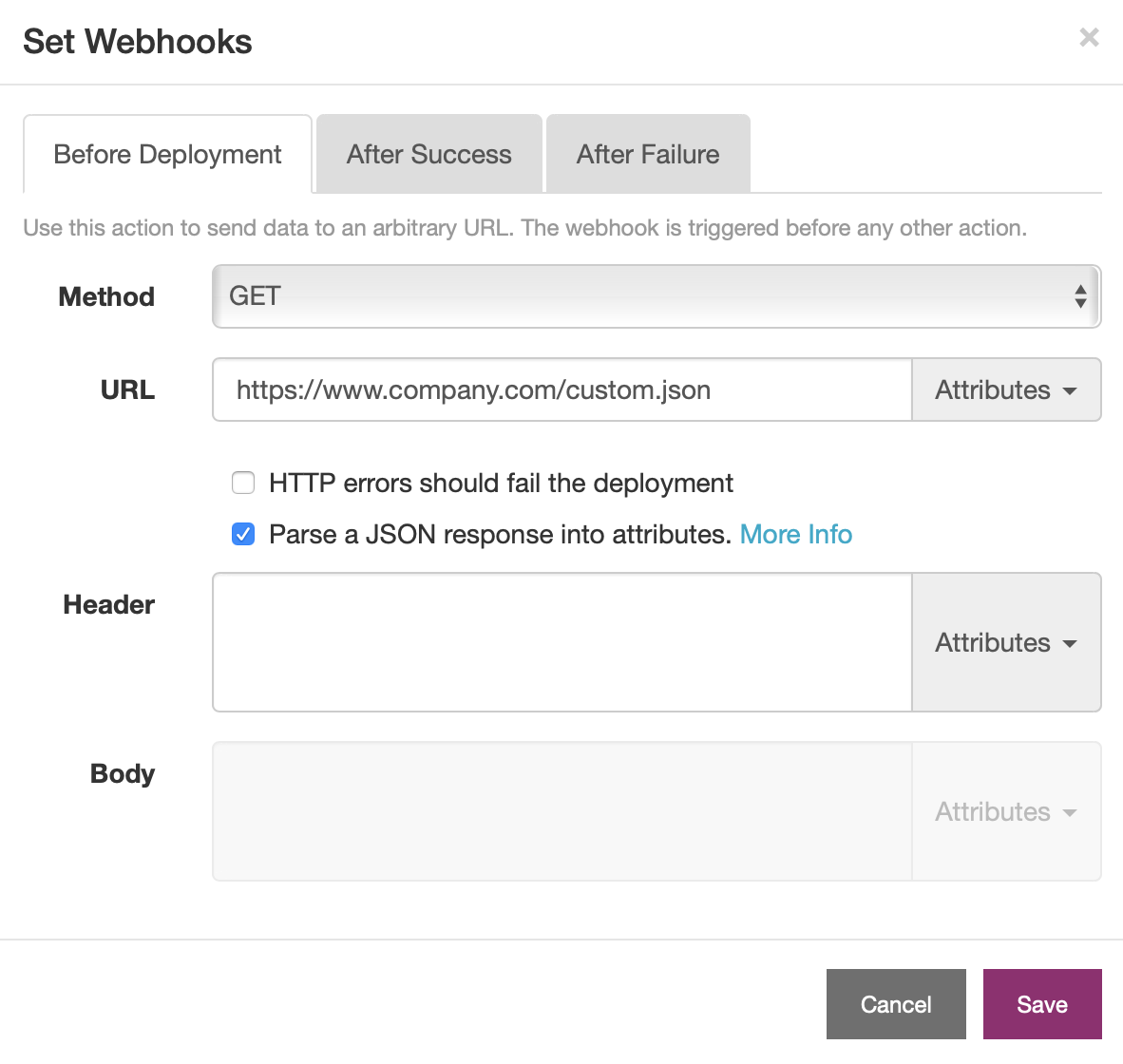

Timing: You may send webhooks during any of these three times:

  • At the very beginning of a deployment, before any other actions
  • After the deployment is successful
  • After any failure

Method: Choose HTTP GET, POST, PUT or DELETE.

URL: Enter the URL of the Webhook destination here. You may add attributes (variables), such as “[Device Serial]” in the URL. GroundControl will perform a substitution just before making the call.

HTTP errors should fail the deployment: This option is available only “Before Deployment.” If checked, any response to the webhook other that 200 or 202 will fail the deployment. If unchecked, the webhook response is ignored.

Parse a JSON response into attributes: This option is available only “Before Deployment.” If checked, GroundControl attempts to interpret webhook responses and set device attributes to the values it finds.

For example, your URL may return this response:

{ "Asset Tag": "12345"; "Color": "Red" }

If you have created a device attribute with the name “Asset Tag”, then GroundControl will set the value of Asset Tag to “12345” for the device(s) in the deployment.

Here are some notes:

  • The JSON response must be a simple object of key-value pairs. Arrays and nested objects are ignored.
  • You should create attributes before testing this feature.
  • Attribute names are case sensitive.
  • Keys that do not match attributes are ignored.
  • Values may be used in other parts of the same workflow.
  • Automation rules are evaluated before deployments begin, so automation rules are evaluated before the webhook is called. For this reason, you can not use this technique to affect automation rules.

Header: You may add headers to the webhook here. Separate multiple headers with newlines.

Body: You may add a body to POST and PUT calls. Feel free to format your data any way you want, for example in XML or JSON. You may include attributes (variables) here as well. GroundControl will perform a substitution just before making the call.

Testing Webhooks

You may find a site such as RequestBin or useful when testing webhooks.
